Introduction
Before a solar module undergoes rigorous electrical and environmental testing, it must first pass a fundamental checkpoint: visual inspection. Defined under IEC 61215-2:2021 as MQT 01, this test is the earliest opportunity to identify manufacturing defects that could compromise performance, safety, or long-term reliability.
While it may sound simple, visual inspection plays a critical role in quality assurance for photovoltaic (PV) modules. Even minor defects—such as microcracks, bubbles, or delamination—can evolve into major failures under field conditions. In this article, we break down the purpose, procedure, and requirements of IEC 61215 Visual Inspection (MQT 01), and explain why it remains essential in modern PV manufacturing and procurement.
What Is IEC 61215 Visual Inspection (MQT 01)?
Visual Inspection (VI), classified as MQT 01 under IEC 61215-2:2021, is a standardized quality test designed to detect visible defects in solar modules before further testing.
Key Overview:
• Standard: IEC 61215-2:2021
• Test Code: MQT 01
• Test Name: Visual Inspection (VI)
• Purpose: Detect any visual defects in the module
• Applicability: All module technologies
This test ensures that modules meet baseline physical quality requirements and are free from defects that could worsen during subsequent stress tests or real-world operation.
Why Visual Inspection Matters in Solar Manufacturing
Visual defects are often early indicators of deeper issues in the manufacturing process or material quality. Identifying them early helps prevent downstream failures, reduces warranty risks, and improves overall system performance.
Common Risks Identified:
• Cracks in cells → Reduced power output, hot spots
• Delamination → Moisture ingress, insulation failure
• Bubbles or voids → Optical losses, mechanical weakness
• Frame or glass damage → Structural instability
• Backsheet defects → Electrical safety hazards
According to industry studies (e.g., NREL and IEA PVPS reports), many field failures can be traced back to defects that were either missed or underestimated during early inspections.
MQT 01 Test Procedure: Step-by-Step
The IEC standard outlines a clear procedure to ensure consistency and reliability in visual inspections.

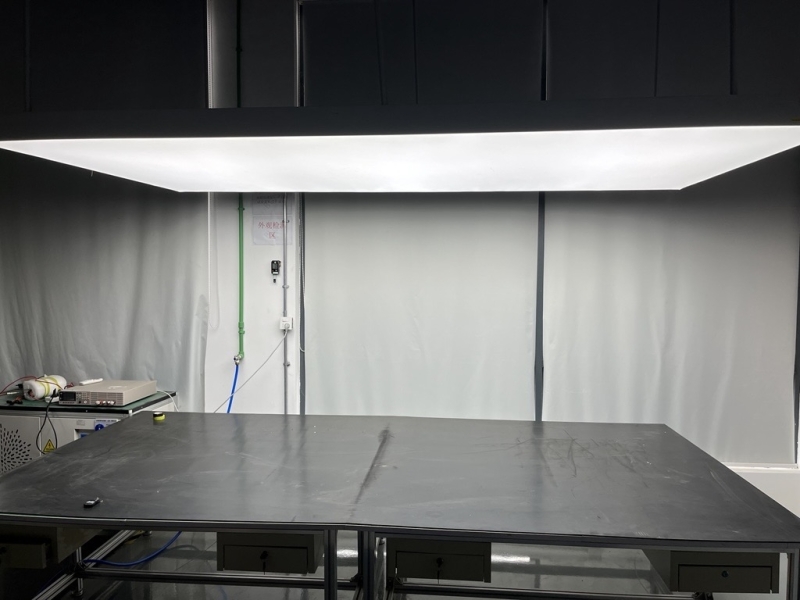

1. Illumination Requirements
Modules must be inspected under lighting conditions of:
• Minimum: 1000 lux illumination
This ensures that even subtle defects are visible to inspectors.
2. Detailed Visual Examination
Each module is carefully examined for:
• Cracks (visible or surface-level)
• Bubbles or voids in encapsulant
• Delamination between layers
• Scratches on glass or backsheet
• Misalignment of cells or components
3. Documentation
Inspectors must:
• Record detailed notes of any observed defects
• Take photographs of all major and relevant minor defects
• Document the location and nature of each defect
4. Defect Classification
Special attention is given to:|
• Major visual defects (as defined by IEC 61215-1:2021)
• Defects that may worsen during subsequent tests (e.g., thermal cycling, humidity freeze)
5. Reporting
A comprehensive report should include:
• Defect descriptions
• Photographic evidence
• Possible root causes
• Associated lab/test conditions
Pass/Fail Criteria for MQT 01
The acceptance criteria for visual inspection are straightforward:
Pass Condition: No evidence of major visual defects
Modules exhibiting major defects are disqualified from further testing, as these issues could invalidate subsequent test results or pose safety risks.
Major vs. Minor Defects: What’s the Difference?
Understanding defect classification is key to interpreting MQT 01 results.
Major Defects (Fail Criteria)
• Cracks affecting active cell area
• Significant delamination
• Exposed conductive parts
• Severe discoloration or burn marks
Minor Defects (Conditional Acceptance)
• Small cosmetic scratches
• Minor frame imperfections
• Slight encapsulant irregularities
Even minor defects must be documented, as they may evolve under stress conditions.
Real-World Implications for Developers and Investors
For EPCs, asset owners, and investors, visual inspection is more than a lab test—it’s a risk mitigation tool.
Why It Matters:
• Prevents early-life failures
• Improves long-term energy yield
• Reduces O&M costs
• Protects ROI and bankability
In procurement processes, third-party inspections based on IEC standards—such as those conducted by Sinovoltaics—help ensure that modules delivered to project sites meet strict quality benchmarks.
Best Practices for Effective Visual Inspection
To maximize the effectiveness of MQT 01, manufacturers and QA teams should adopt the following:
Standardized Inspection Protocols
• Use calibrated lighting systems
• Train inspectors consistently
• Follow IEC defect classification guidelines
Digital Documentation
• High-resolution imaging
• Defect mapping tools
• Traceability systems linked to production batches
Integration with Quality Control Systems
• Combine VI results with EL (electroluminescence) imaging
• Cross-reference with production data
• Implement feedback loops for process improvement
Conclusion
IEC 61215 Visual Inspection (MQT 01) may be the simplest test in the PV qualification sequence, but its importance cannot be overstated. By identifying visible defects early, it serves as the first safeguard against performance degradation, safety risks, and financial losses.
As solar projects scale globally and quality expectations rise, rigorous adherence to standards like MQT 01 is essential. Whether you’re a manufacturer, developer, or investor, understanding and implementing effective visual inspection practices is a critical step toward ensuring reliable, high-performing solar assets.
